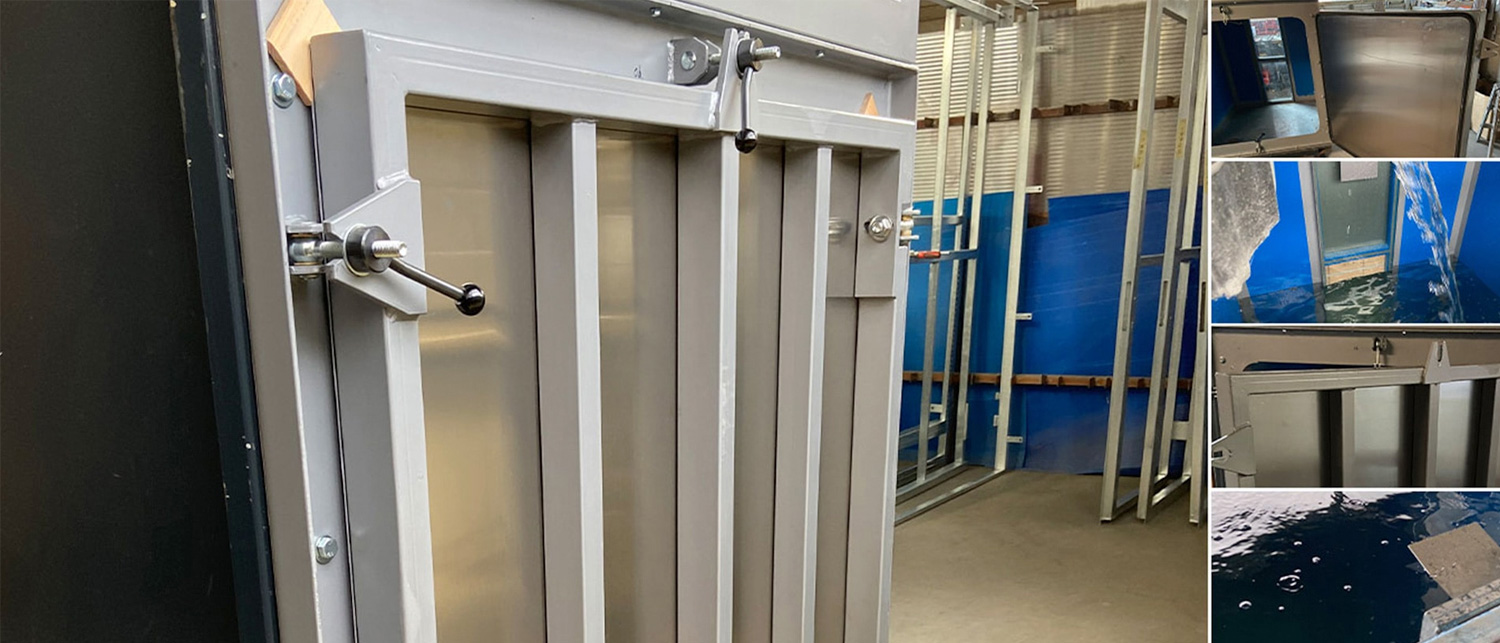

The AquaLOCK® Flap – Flexible Protection for Openings up to 1300 mm x 1300 mm

Effortless Installation, User-Friendly Operation, and Versatile Application

The AquaLOCK® Flap provides efficient protection for smaller openings in a variety of settings. It is particularly suitable for industrial and commercial buildings, as well as public facilities such as swimming pools, where service and maintenance openings—used infrequently for annual inspections or cleaning—are common. Optimal Protection for Smaller Openings Designed for openings up to 1300 mm x 1300 mm, the AquaLOCK® Flap is quick to install and simple to operate, delivering reliable protection against water ingress. Ideal for Residential and Commercial Use In both residential and commercial environments, numerous openings are at risk of water intrusion. Even small inlets can cause significant damage during floods. The AquaLOCK® Flap is the ideal solution, offering robust protection to mitigate potential risks. The AquaLOCK® Flap – Versatile and Reliable Protection for Openings up to 1300 mm x 1300 mm Adaptable for Interior and Exterior Applications Whether used indoors or outdoors, the AquaLOCK® Flap is designed to fit any opening up to 1300 mm in width and height. Its clamping levers and distance limiters prevent incorrect operation, ensuring safe and reliable use.

Tested Flood Resistance up to 1.3 Meters

Like all AquaLOCK® products, the Flap has undergone rigorous testing to meet high-performance standards. It can withstand water pressure equivalent to a water level of 1.3 meters, providing robust flood protection.

Optional Features and Material Choices

Lockable Design: The Flap can be optionally secured with a padlock for added security.
Flexible Operation: It can be opened 180° or completely removed as needed (supplied without hinges).
Material Options: Available in galvanized steel (Version V) or stainless steel (Version E).
Custom Finish: Painted in any desired RAL color for seamless integration with existing structures

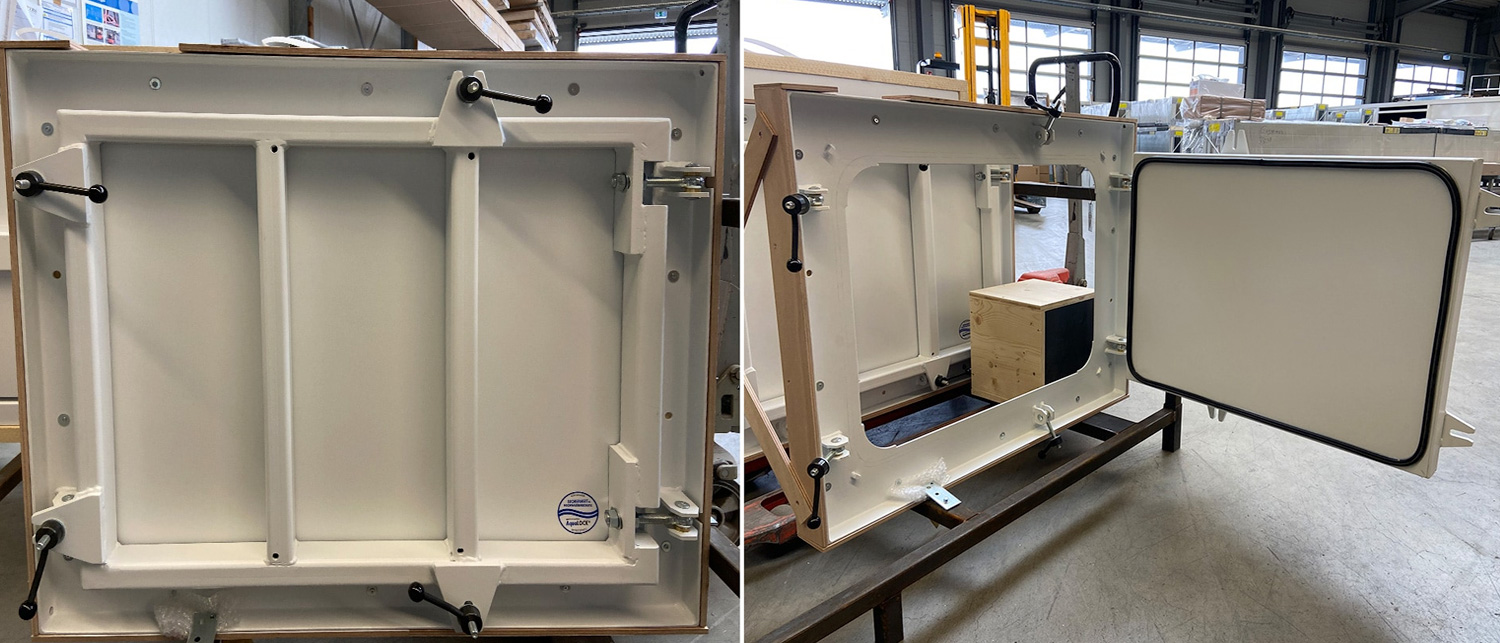

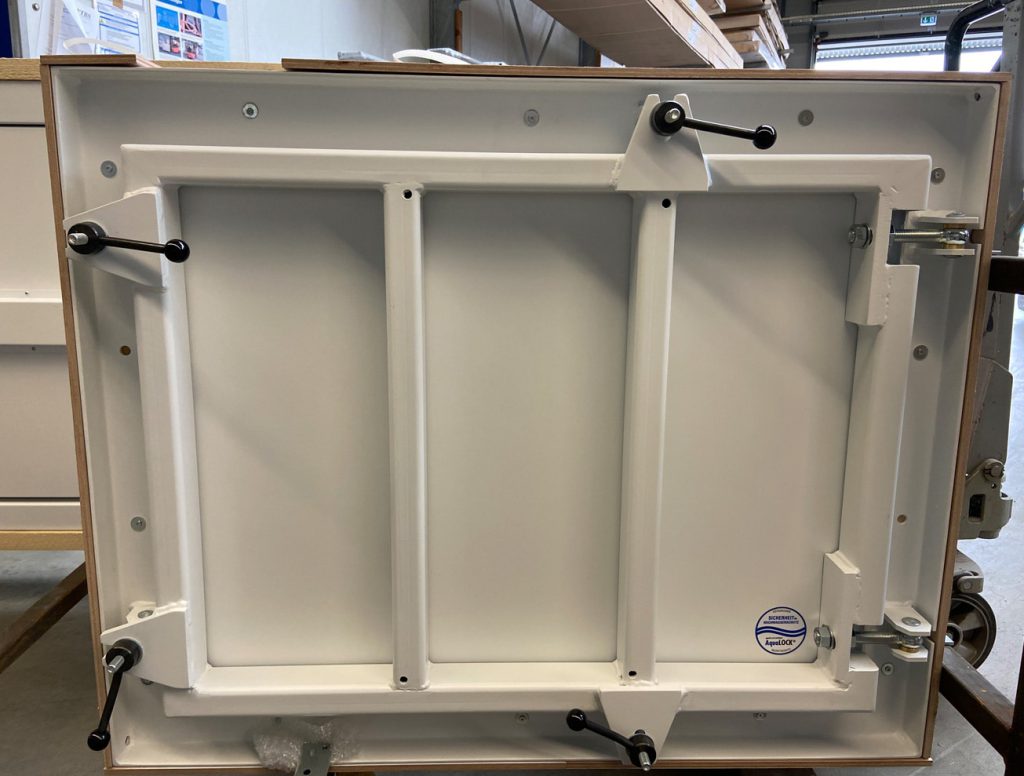

Flap with Hinges (DIN Right): Hinged design for ease of operation.

Key Advantages of the AquaLOCK® Flap

  • Maximum Dimensions: Width 1300 mm, Height 1300 mm.
  • Durable Steel Construction: Built with galvanized steel or stainless steel for long-lasting performance.
  • Customizable Finish: Coated in your choice of RAL colors.
  • Quick and Easy Installation: Designed for straightforward setup and use.
  • Technical Specifications and Applications for the AquaLOCK® Flap

Features

  • 180° Opening Capability: Allows for full access when required.

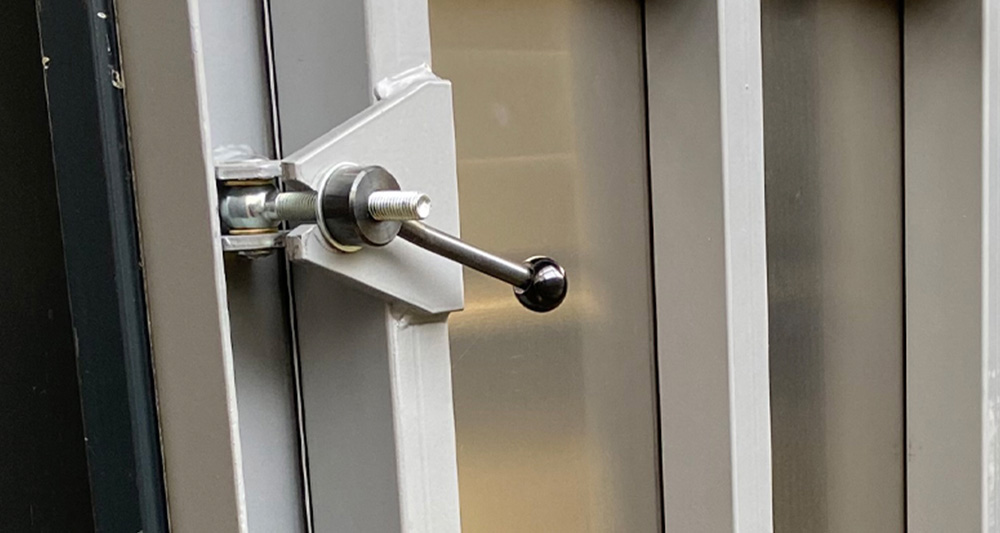

  • Quick-Locking System: Equipped with crank handles for easy operation.
  • AquaLOCK® Sealing System: Four-sided sealing ensures up to 99.6% water resistance.
  • Hinge-Free Option: Can be supplied without hinges, allowing the panel to be completely removed.
  • Certified Water Resistance: Tested to withstand a water column of 2.3 meters.
  • The AquaLOCK® Flap provides reliable protection against water ingress and serves as the ideal solution for diverse applications across various environments.

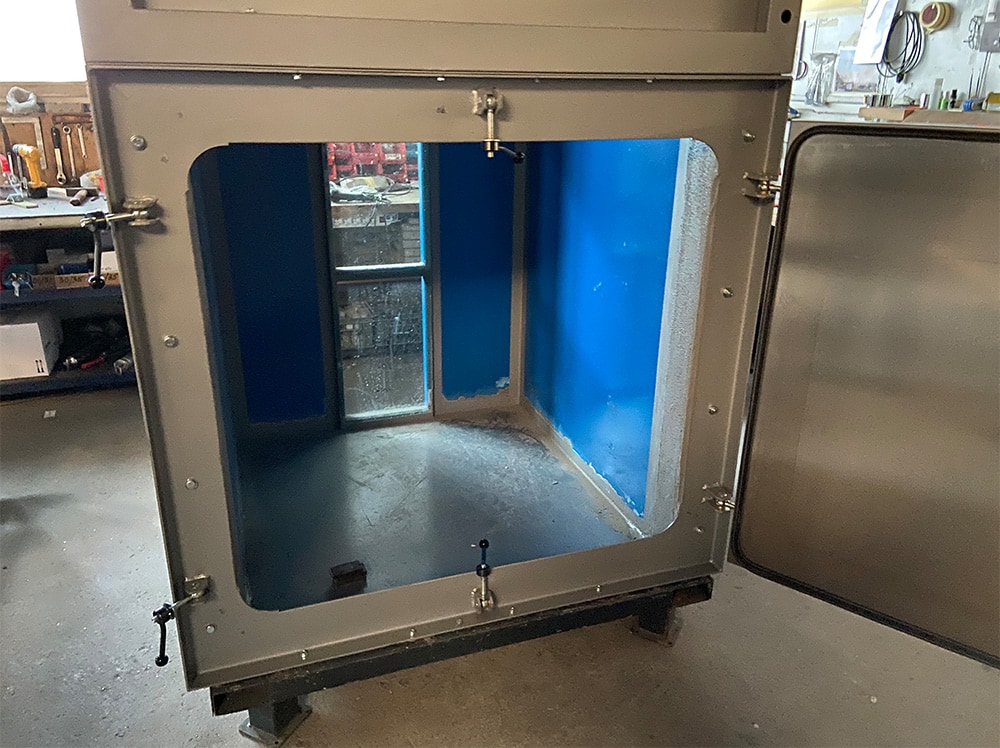

Test Setup: Water-tightness certification testing of the Flap.

Applications

Vertical Installation:

  • Basement Windows
  • Workshop Windows
  • Silo Openings
  • Wall Openings (up to 1300 mm x 1300 mm)
  • Machine Access Openings

Horizontal Installation:

  • Shaft Covers
  • Drainage Opening Covers
  • Ceiling Openings

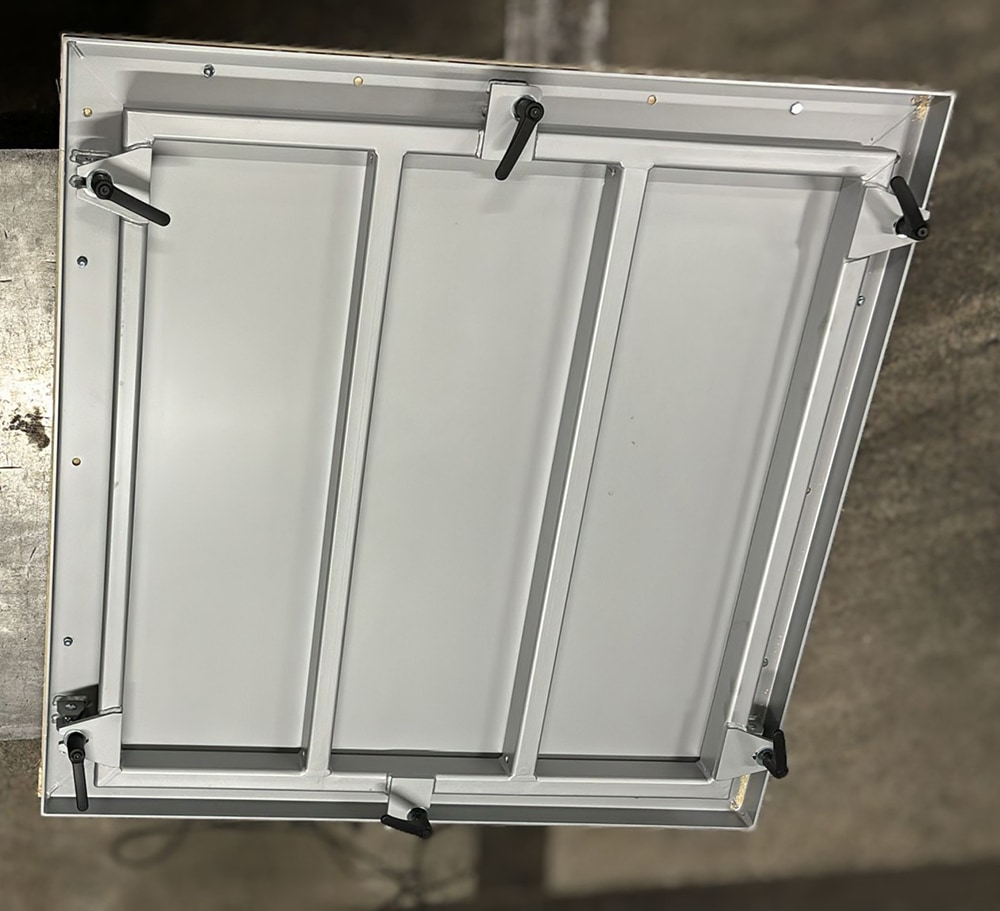

Flap Without Hinges: Removable panel for flexible access.

Aqualock Flap Standard Dimension
AQUALOCK® FLAP STANDARD DIMENSION
Maximum Opening Height: Based on configuration Maximum Opening Width: Based on configuration Seal System Protection Height: Adjustable according to design
1300 mm 1300 mm 2300 mm
